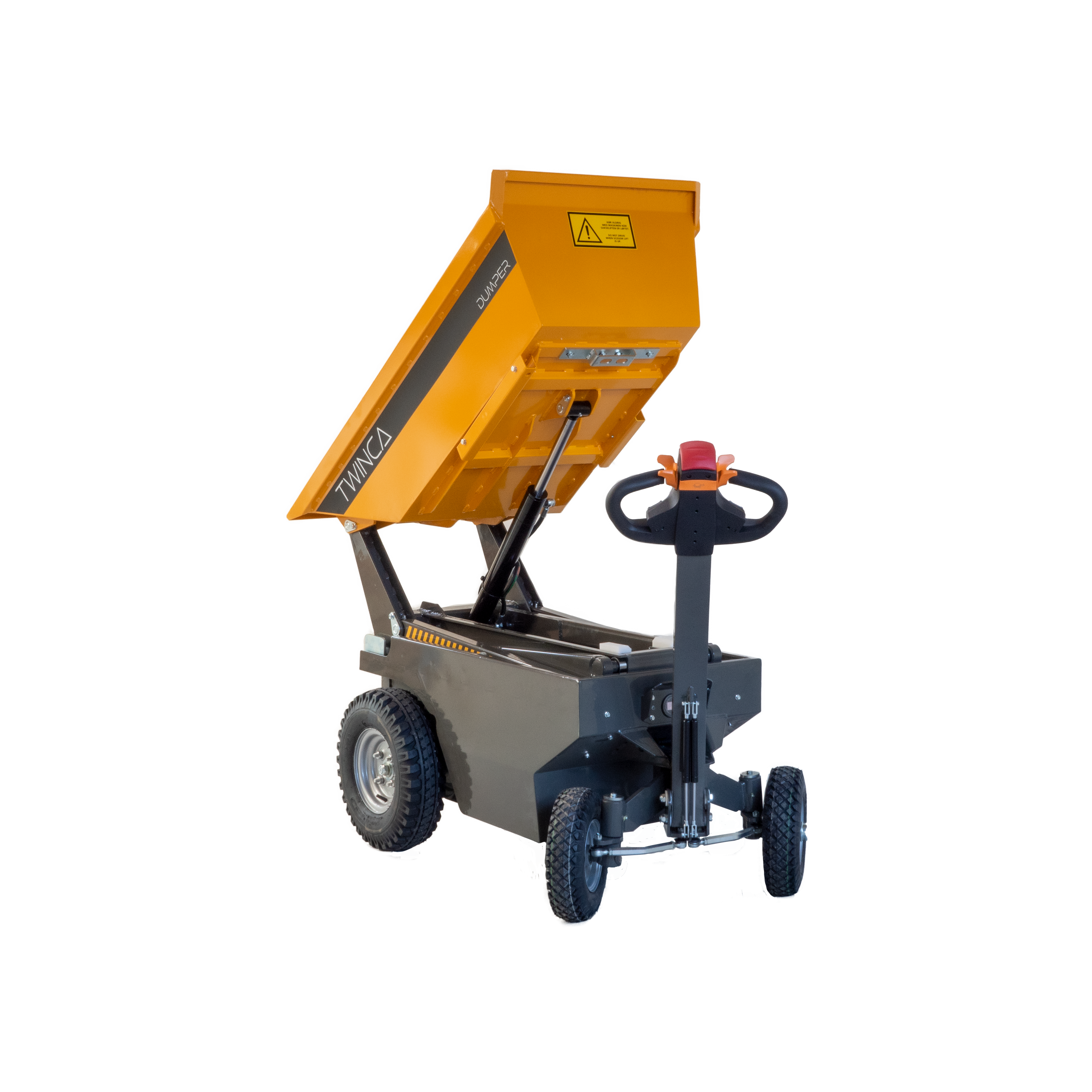

  Twinca Dumper ES-500 Slim



    • With Twinca’s Twinca ES-500 slim has a loading capacity of 500 kg and is ideal in tight spaces.

    • Unlike Twinca's ES-500 model, the slim version has been made even narrower, and has a total width of 742 mm. This mini dumper is created for cemeteries, gardens/horticulture as well as indoor and outdoor demolition, etc. .

    • The high lift function enhances the efficiency of your work and is especially characterized by its ability to unload in piles or over high edges such as e.g. a container.

    • With a height of 979, the ES-500 slim has a very comfortable loading-height. 

    • A fully charged battery can run the machine throughout a full working day, and can be recharged within 4-5 hours. 

    • The machines’ auto-steering mechanism reduces the need for physical manpower to a minimum level, even when the minidumper is heavily loaded. 

    • The steering mechanism can be moved and adjusted in accordance with the height of the operator. This helps secure that the operator has the optimal ergonomic working position and reduces the physical workload. 

    • The ES-500 Slim offers stepless adjustment of speed.

    • Generates limited level of noise and is far below the Danish working environment authority’s recommendations for use of hearing protection, (80 dB(A)), and can therefore be operated without the use of ear protection.



  ES-500 Slim  Data
  Width 742 mm
  Length 1790 mm
  Height 979 mm
  Steering height 1164 mm
  Height load platform top 2712 mm
  Height load platform bottom scissors up 1307 mm

  Machine weight 463 kg
  Battery 2 x 12 V /112 Ah

 Capacity content volume 250 L
 Capacity content weight 500 kg

  Hydraulic oil  Viskositet 32
